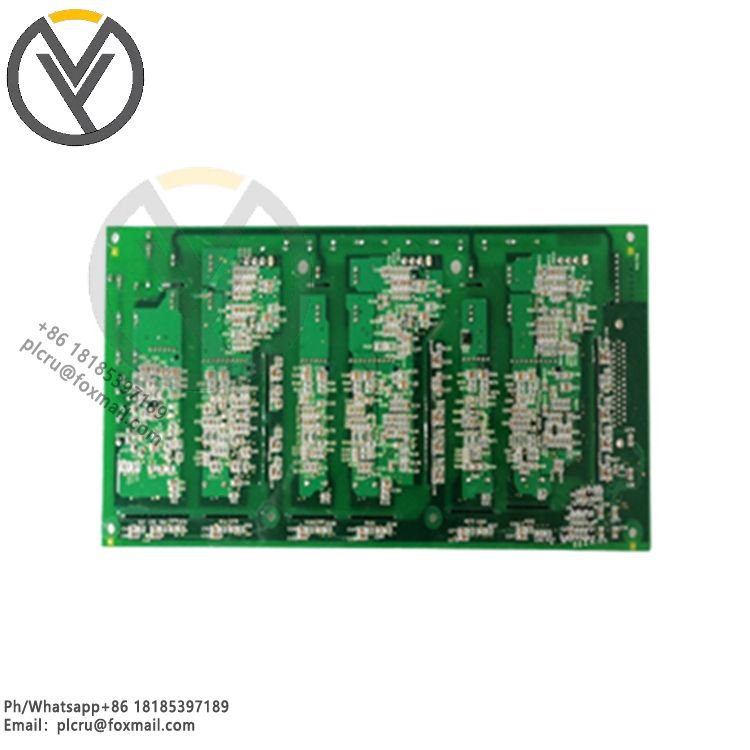

DS200DDTBG1A GE I/O Terminal Board

The DS200DDTBG1A GE I/O Terminal Board is a device produced by General Electric (GE) and is mainly used for auxiliary inputs and outputs in industrial automation systems and power systems. The following are detailed information and features about the DS200DDTBG1A GE I/O Terminal Board:

Basic Description:

The DS200DDTBG1A is known as the auxiliary input and output terminal board and is the LCI auxiliary I/O terminal board in the GE LS2100 series control system.

It is particularly suitable for application scenarios that require processing of various input and output signals.

Main Features:

Electronic ID Memory: The DS200DDTBG1A is equipped with an electronic ID memory function for storing board identification and hardware version information. This function is implemented through a single-wire LAN, allowing the connected DSPC board to recognize the board present in the system.

Multiple Input Types: The terminal board supports high-voltage AC input, high-current signal input, low-current signal input, and 4-20 mA current loop input.

Testing and Monitoring: The DS200DDTBG1A is equipped with thirty-three test points for signal measurement. In addition, it has 17 LED indicators, one of which is used to indicate the status of the board, and the rest are driven by software and hardware.

Power Source: The power of the DS200DDTBG1A board comes from the included ADMA board.

Technical Specifications:

Voltage Output: Four buffered analog outputs are provided.

Number of LEDs: There are a total of 17 LEDs, labeled DS1-DS17.

Number of Jumpers: 12 3-pin cable jumpers are included.
