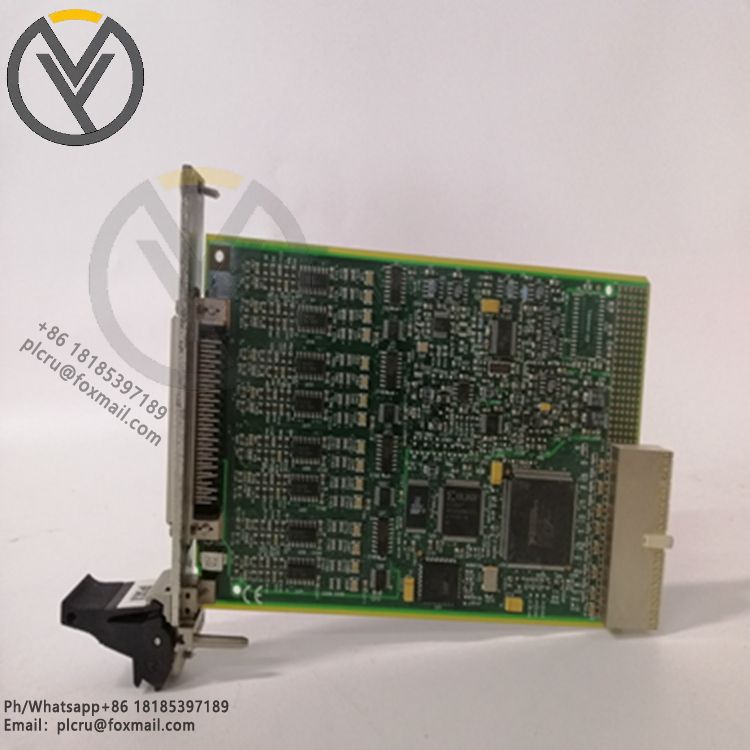

NI PXIe-6738 PXI Analog Output Module

The NI PXIe-6738 PXI analog output module is a powerful, high-density analog output module with the following main features and technical parameters:

Main applications:

Provide analog output signals for PXI systems.

Supports static and software-timed voltage output applications.

Can be used for control and waveform output applications, including stimulus-response, power control, high-speed, deterministic control, and sensor/signal simulation.

Technical specifications:

Number of channels: High-density design with 32 channels allows users to achieve high sampling rates, each channel must be in a different group.

Update rate: The maximum update rate is 1 MS/s, ensuring fast response and efficient data transmission.

Output voltage range: -10 V to 10 V, meeting the needs of a variety of applications.

Resolution: 16 bits, providing high-precision analog output.

Digital I/O lines: The module contains 5V TTL/CMOS digital I/O lines, which increases the flexibility and scalability of the module.

Replacement function:

This module can replace a variety of instruments, including independent proportional integral derivative (PID) controllers, low-speed arbitrary waveform generators, and function generators, thereby simplifying test systems and reducing costs.

Advanced features:

Provides synchronous multi-channel updates to ensure synchronization and coordination of output signals between multiple channels.

Suitable for applications such as high-density stimulus-response testing and open-loop simulation.

Compatibility:

The module supports NI-DAQmx drivers and configuration utilities to simplify configuration and measurement.

Supports NI programming environment and programming software such as Python, ANSI C, C#.NET, and MathWorks MATLAB®, facilitating users to carry out system integration and software development.

In summary, the NI PXIe-6738 PXI analog output module is a comprehensive and high-performance analog output module suitable for a variety of application scenarios requiring high-precision analog output.
