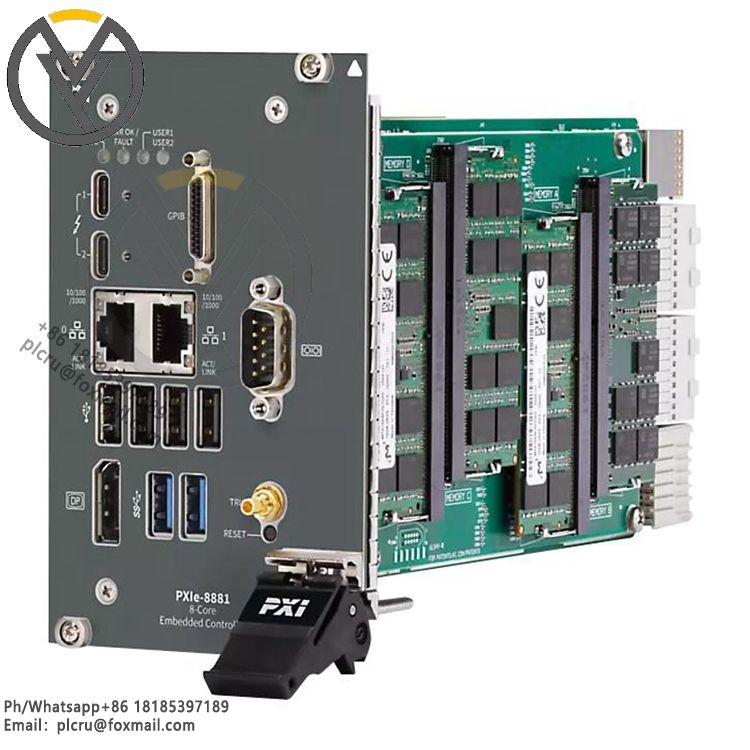

NI PXIe-8881 PXI embedded controller

The NI PXIe-8881 PXI Embedded Controller is a high-performance embedded computer solution designed for PXI, CompactPCI and PXI Express systems. Here are the details about the controller:

Basic features:

Controller type: PXI Embedded controller

Manufacturer: National Instruments (NI)

Model: PXIe-8881

Hardware configuration:

Processor: Xeon 4-core processor, specific frequency of 2.8GHz.

Memory: Up to 24 GB of RAM (according to reference Article 1), but specific models may vary.

Storage: Hard disk capacity is not directly mentioned, but PXI controllers typically have a built-in hard drive.

I/O ports: Includes two USB 3.0 ports, two Gigabit Ethernet ports (compatible with 10/100/1000ba se-TX), four USB 2.0 ports, two Thunderbolt 3 ports, a serial port, and other types of peripheral I/O.

System performance:

Controller bandwidth: A high-bandwidth system controller that can be easily combined with any compatible PXI high-speed chassis (such as the Nickel PXIe-1085).

Throughput: The PXI controller provides up to 8 GB/s of system throughput and 2 GB/s of slot throughput.

Software and Operating System:

Operating system: Windows 10 64-bit.

Upgrade options: user-accessible RAM, allowing factory installed RAM capacity to be upgraded; Users can also replace the pre-installed operating system with a USB CD-ROM or DVD-ROM.

Applications:

Ideal for a variety of applications, including data acquisition and RF modular instrumentation.

Synchronization and timing:

Integrated features: The front panel contains a display port v1.2 that provides an integrated differential system 100 MHz reference clock controller, and three differential star trigger buses for distributing trigger and clock signals.
