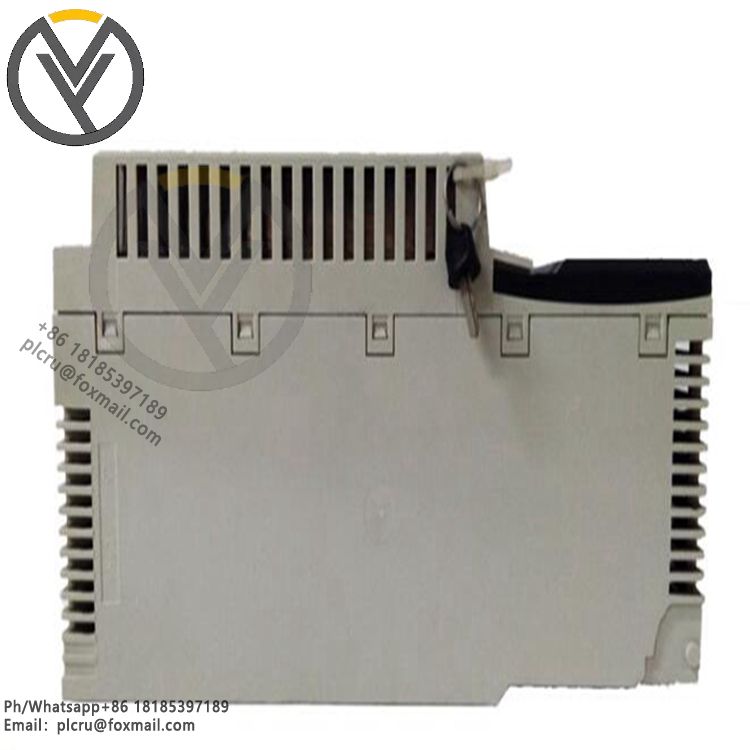

Schneider Electric LMC402CAA10000 Motion Controller

Schneider Electric LMC402CAA10000 motion controller is a high-performance motion control solution, belonging to Schneider Electric's PacDrive 3 series. The following are detailed information about this motion controller:

1. Basic parameters

Model: LMC402CAA10000

Series: PacDrive 3

Rated voltage: 24VDC

Discrete output current: 250mA

Power consumption: 36W

Dimensions: 100mm (W) x 243mm (D) x 310mm (H)

Weight: 3.5kg

2. Features

Number of axes and inputs: Provides 16 axes, 20 discrete inputs, including 4 interrupt inputs and 16 contact probe inputs.

Synchronization performance: Able to synchronize up to 130 servo axes and up to 255 virtual axes at a 1ms network update rate.

Compliant standards: Complies with IEC 61131-2 Type 1 standard and is certified by CULus, CSA, CE, EAC.

Application areas: Suitable for motion control of automated machines/production lines with 0-130 servo or robot axes.
