ABB 3BHE023784R0001 IGCT Module 5SHY 3545L0014

ABB 3BHE023784R0001 IGCT (Integrated Gate commutated thyristor) module and 5SHY 3545L0014 (which may also be some type of IGCT or related module) are power electronic components produced by ABB Corporation or its partners. Here are some details about the ABB 3BHE023784R0001 IGCT module:

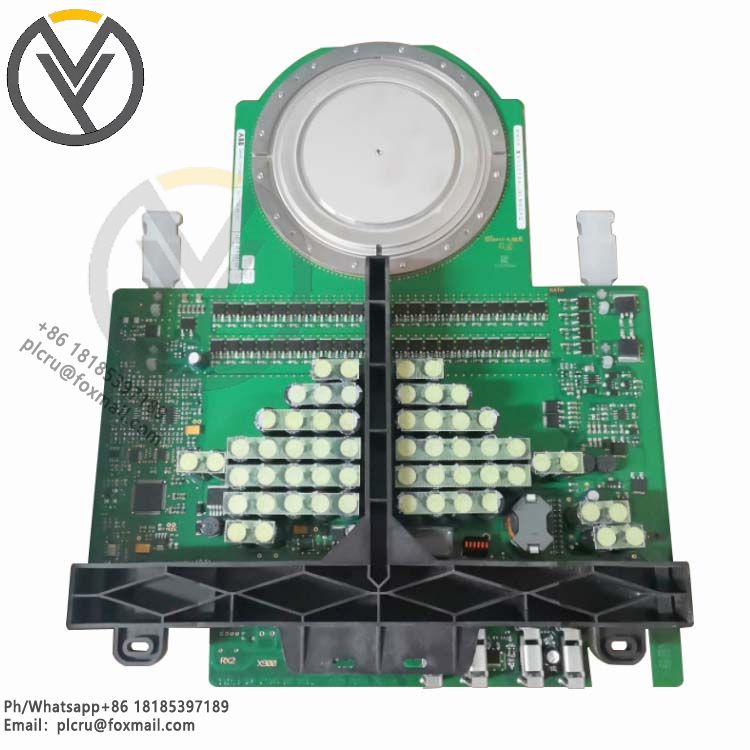

ABB 3BHE023784R0001 IGCT Module:

The module is a high-performance power electronic component produced by ABB, which adopts modular design and consists of IGCT chip, drive circuit, heat sink and other components.

It has a compact construction and is easy to install and maintain.

In terms of technical parameters, the maximum voltage of the module is 4500V, the maximum current is 600A, the maximum power is 360kW, the switching speed is 10μs, and the efficiency is as high as 98%.

The dimensions are 170mm x 100mm x 50mm and the weight is 2kg.

The IGCT module is widely used in power transmission and distribution systems, motor control, renewable energy generation, rail transit and industrial applications to achieve efficient and reliable power conversion and control, providing stable power support for a variety of complex application scenarios.
