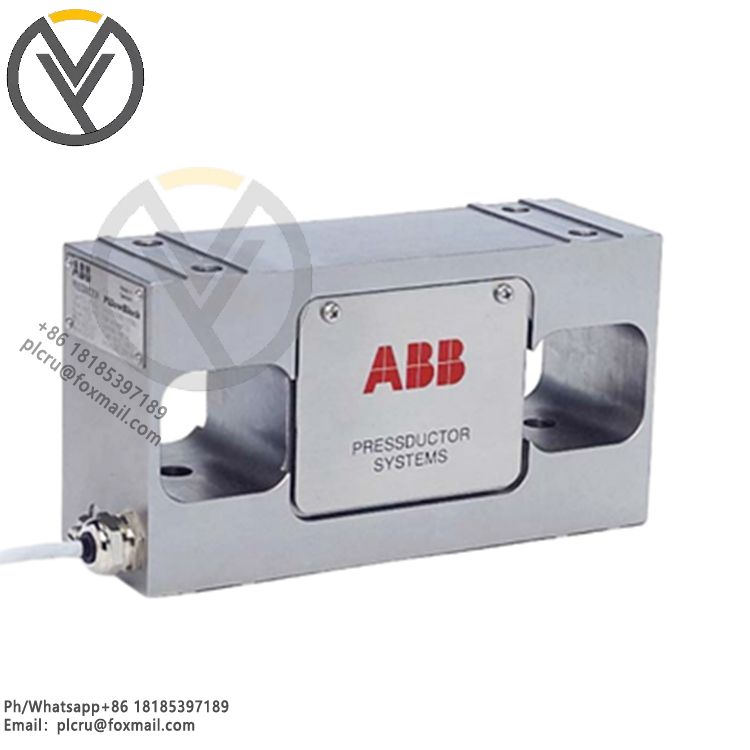

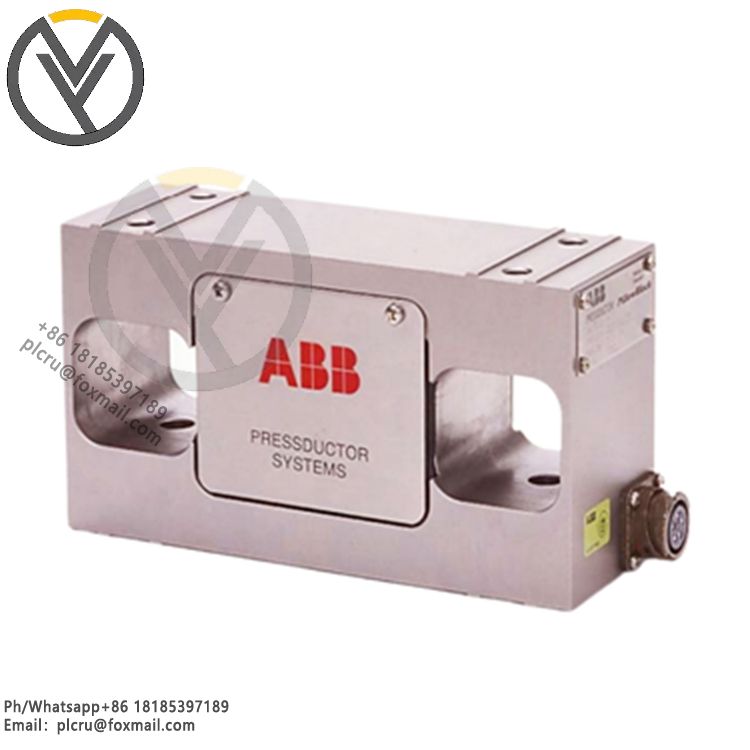

ABB PFTL101B 3BSE004197R0001 Load cell

The ABB PFTL101B 3BSE004197R0001 load cell is a high-performance sensor device with a wide range of characteristics and applications. Here is a detailed description of this load cell:

Technical principle:

The PFTL101B 3BSE004197R0001 load cell uses piezomagnetic technology and works on the principle that the magnetic permeability of the magnetic material changes under the action of mechanical force. The sensor is made from a single piece of stainless steel and has a robust structure, suitable for a variety of complex environments.

Structural features:

There are four holes punched in the sensor body, through which two groups of coils are wound, and they form a certain Angle to each other. When an alternating current is passed through the primary coil, a magnetic field is generated in the primary coil.

When a mechanical force is applied in the measurement direction of the sensor, the direction of magnetic field propagation in the primary coil changes, which affects the magnetic field of the secondary coil, which in turn generates an induced potential in the secondary coil.

Performance parameters:

The maximum response frequency can reach 500Kpps, which is much higher than the received pulse frequency of conventional drivers.

Photoelectric isolation of signal input/output to ensure the stability and safety of signal transmission.

5V, 12V, 24V signal input compatible, no additional current limiting resistance.

The drive current RMS can be adjusted from 1.2A/ phase to 4.5A/ phase in 16 stages to meet different application requirements.

Single power input, voltage range: AC80V-220V, with wide voltage adaptability.

Application field:

The sensor is suitable for tension measurement and control in power plants, steel mills, cement plants, ships, papermaking and other industries, and can meet the demand for high-precision tension measurement in different environments.
