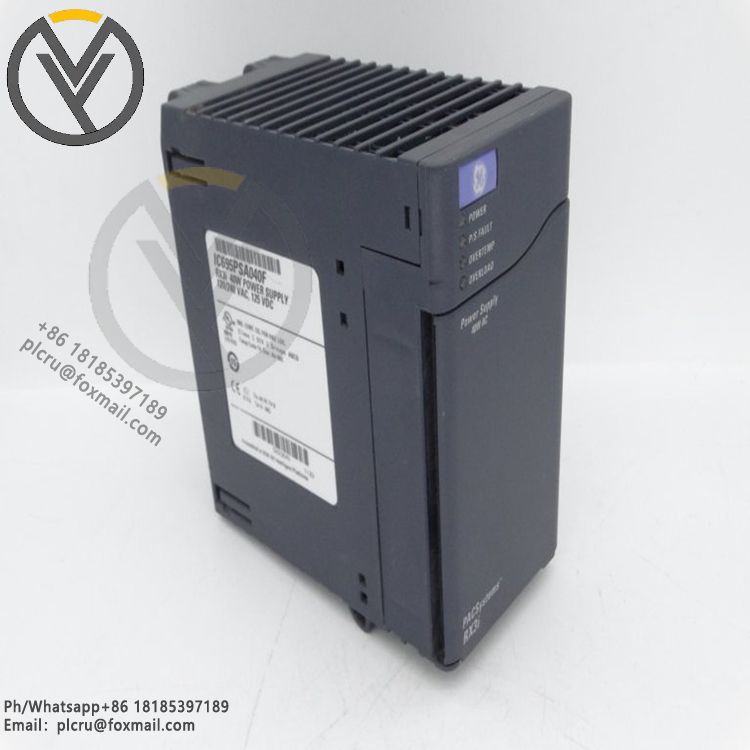

Emerson IC695PSA040 Rx3i Power module
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The Emerson IC695PSA040 Rx3i Power module is a power supply device manufactured
The Emerson IC695PSA040 Rx3i Power module is a power supply device manufactured by GE Fanuc (now part of Emerson) and belongs to the PACSystems RX3i family. The following is a detailed analysis of the power module:
1. Basic information
Model: IC695PSA040
Manufacturer: GE Fanuc (now part of Emerson)
Series: PACSystems RX3i
Power: 40 watts
Second, power supply characteristics
Input voltage range: The module supports a wide range of input voltages, including 85 to 264 VAC (AC) or 100 to 300 VDC (DC), to suit different industrial environments and power needs.
Output voltage and type:
+5.1 VDC: Standard DC output for various devices within the system.
+24 VDC relay output: designed to power circuits on the output relay module.
+3.3 VDC: For internal use only, specifically to provide power support for RX3i modules with the IC695 directory number.
3. Technical specifications
Wiring and installation: Each terminal can accept 14 AWG to 22 AWG wire, and the current limit is 6 amps per terminal. In the PACSystems RX3i universal backplane, only one IC695PSA040 power module can be installed, which occupies two slots.
Redundancy and Scalability: While the IC695PSA040 cannot be used with other RX3i power supplies in redundancy or increased capacity mode, it can Daisy chain up to four PSA040 power modules to provide additional power support.
4. Indicator light and fault detection
Power indicator: The power LED is located at the top and is green when powering the backplane, or amber if the power switch is off.
Fault indicator:
P/S Fault (red) : When this LED lights up, it indicates that the power supply has failed and insufficient voltage is being provided to the backplane.
Over Temperature (amber) : Lights up when the power supply approaches or exceeds its maximum operating temperature.
Overload (amber) : Lights up when the power supply approaches or exceeds the maximum output capacity of either of its outputs.
5. Application Scenarios
Due to the high reliability and stability of the IC695PSA040 power module, it is widely used in industrial automation systems, providing power support for PLC (programmable logic controller), sensors, actuators and other equipment.
