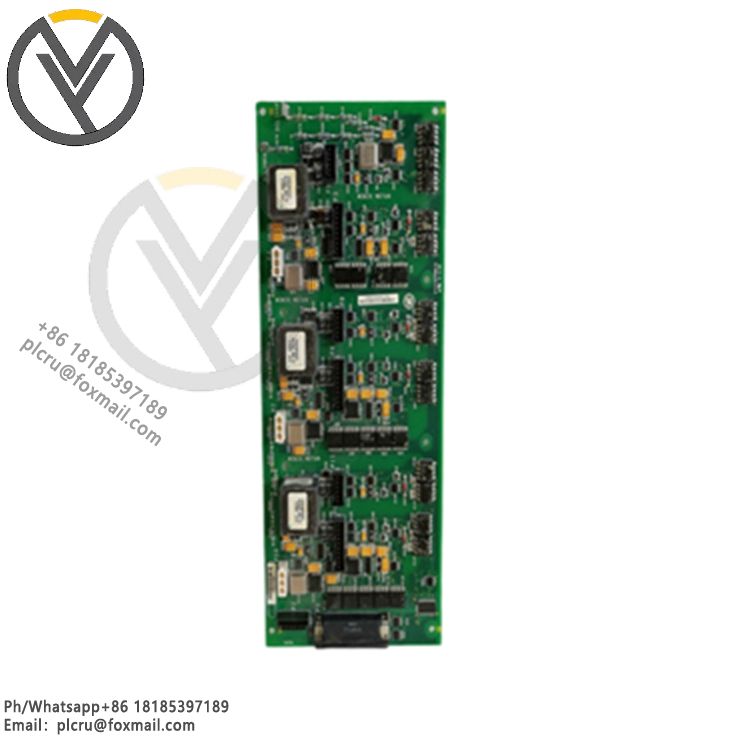

GE DS200VPBLG1A VME Backplane

The relevant information about the GE DS200VPBLG1A VME backplane can be summarized as follows:

Basic Information:

Model: DS200VPBLG1A

Manufacturer: GE (General Electric)

Type: VME backplane, a multi-layer board used in load commutator inverter control systems.

Physical Characteristics:

Weight: Approximately 1 pound 7 ounces (the specific weight may vary depending on the specific production batch).

Number of power plugs: 10 power plugs.

Exciter connection: 34-pin ribbon connector.

Number of test points: 60 spring coils.

Function and purpose:

Board description: VPBL.

Function abbreviation/abbreviation: VPBL.

Supported boards: The J2 section supports DSPC boards, IO expanders, and up to three FCGD boards.

Purpose: This backplane is used in the J2 and JBOY3 band sections of the equipment plug-in box. The J2 section is used to support multiple boards, while the JBOY3 section is generally used for external connections that are not on the front of the board.

Technical Specifications:

Tachometer Settings: There are two tachometer settings inside the board, including a 12-pin terminal block and jumpers for configuring the tachometer settings.

Connector Descriptions: The terminal block connectors have 10 names and individual descriptions, such as E0V2 (tach power V1 common node choke), E1V1 (tach power V1+ common mode choke), etc.
