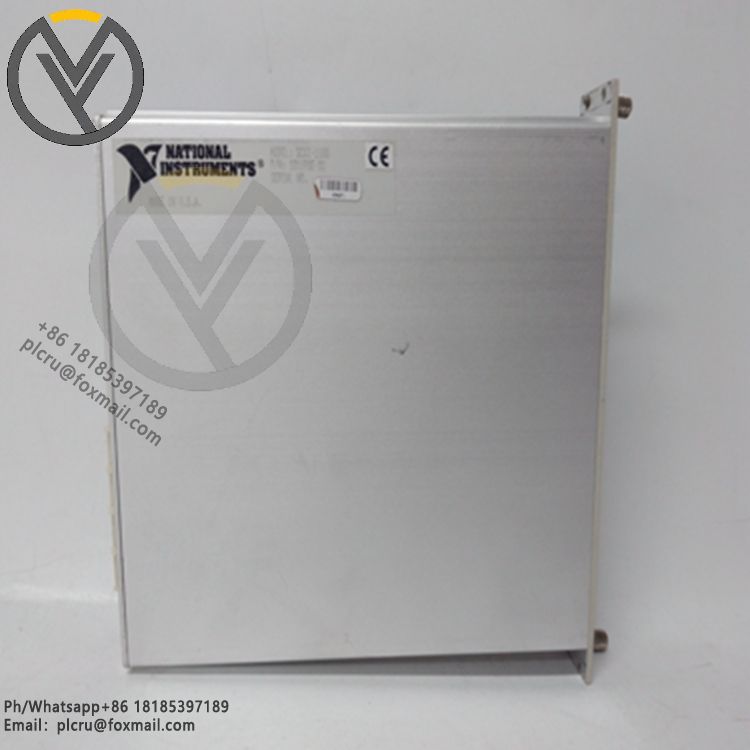

SCXI-1100 National Instruments Voltage Input Module

The SCXI-1100 National Instruments Voltage Input Module is a high-performance voltage input module designed for data acquisition and signal processing. It has multiple voltage input channels and can receive and process voltage signals from various sensors and devices.

Key features of the SCXI-1100 module include:

Multi-channel design: This module provides multiple voltage input channels, supports single-ended and differential measurements, and allows users to connect multiple voltage sources (such as sensors, test instruments, etc.) for parallel voltage measurements.

Measuring range selection: In order to meet the measurement needs of voltage signals of different amplitudes, the SCXI-1100 module usually provides a variety of measuring range options, and users can choose the appropriate measuring range settings according to the measurement needs.

High accuracy and resolution: Through advanced circuit design and high-quality electronic components, this module is able to achieve high-precision voltage measurement. The resolution is determined by the NI data acquisition hardware and settings selected, ensuring accuracy when converting continuous signals to digital signals.

Flexible sampling rate: The sampling rate depends on the configuration of the module and the data acquisition hardware used with it, and can be adjusted according to application requirements to ensure efficient data collection.

Software support: The SCXI-1100 module is usually used in conjunction with National Instruments' software platforms (such as LabVIEW) to provide powerful tools and libraries to help users collect, analyze and visualize data.

In addition, the SCXI-1100 module also features a modular design, allowing users to add or change modules according to application requirements. It is commonly used in test and measurement systems, industrial automation, laboratory research, and educational purposes to provide reliable solutions for a variety of voltage measurement applications.
