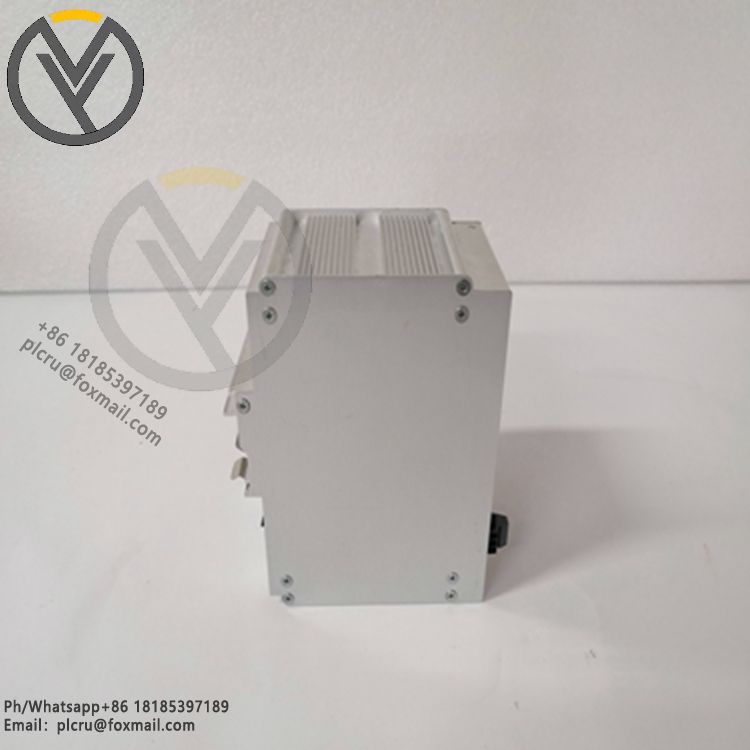

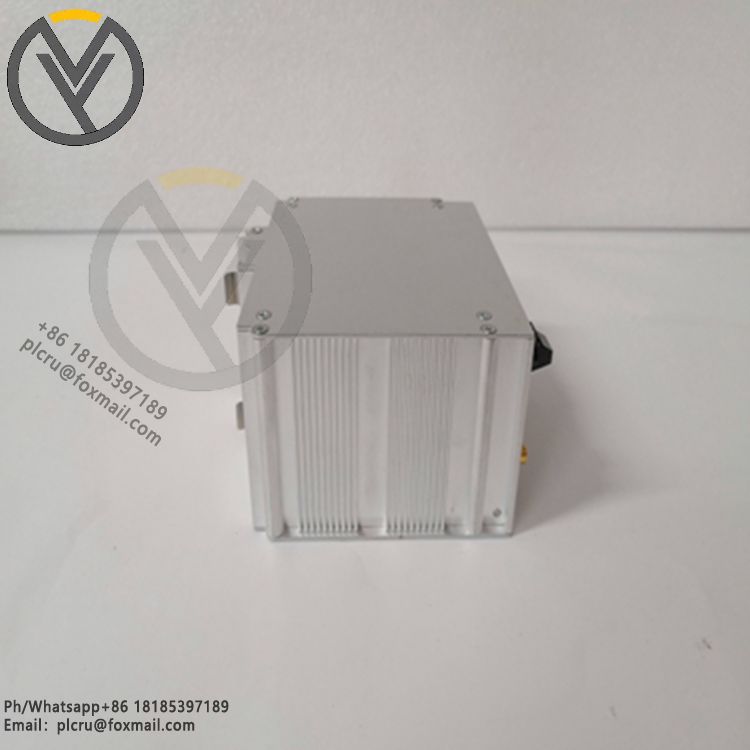

PROSOFT 5301-MBP-DFCM Redundant processor module

The PROSOFT 5301-MBP-DFCM redundant processor module is a communication gateway designed for industrial automation and control systems. Here are the details and features of the module:

Basic information

Model: PROSOFT 5301-MBP-DFCM

Type: Redundant processor module/communication gateway

Main functions: Establish connections between devices on the Modbus Plus network and DF1 dependent devices to achieve data communication and integration.

Technical specification

Power Supply:

Rated voltage: 24 VDC

Allowed range: 18 to 32 VDC

Current load: up to 500 MA @ up to 32 volts DC

Environmental adaptability:

Operating temperature: -4 ° F to 122 ° F (-20 ° C to 50 ° C)

Storage temperature: -40 ° F to 185 ° F (-40 ° C to 85 ° C)

Relative humidity: 5% to 95% (non-condensing)

Physical size:

Standard size: 5.20 inches high x 2.07 inches wide x 4.52 inches deep (13.2 cm x 5.25 cm x 11.48 cm)

Extension size: 5.20 "high x 2.73" wide x 4.52 "deep (13.2 cm x 6.934 cm x 11.48 cm)

Interface and configuration:

Modbus Plus connectors: Two DB9 female standard Modbus Plus connectors

Serial ports: Up to four configurable serial ports with DB-9M RS-232 support (no hardware handshake)

LED indicators: Power and module status, application status, serial port activity, serial port error status

Electrical isolation and port protection:

Port isolation: According to UL 1577, 3000 VDC minimum, 2500 V RMS port signal isolation.

Port to ground and port to logical power are isolated.

Characteristics and advantages

Powerful interface capability: Devices for Modbus Plus and DF1 protocols can be easily connected to devices such as Rockwell Automation PLC.

Wide range of application scenarios: Suitable for manufacturing, oil and gas, power and food processing and other industries.

Redundant design: Provides redundant functions to ensure high availability and stability of the system.

Flexible configuration: Both Modbus Plus and DF1 ports are fully configurable to meet different application requirements.
