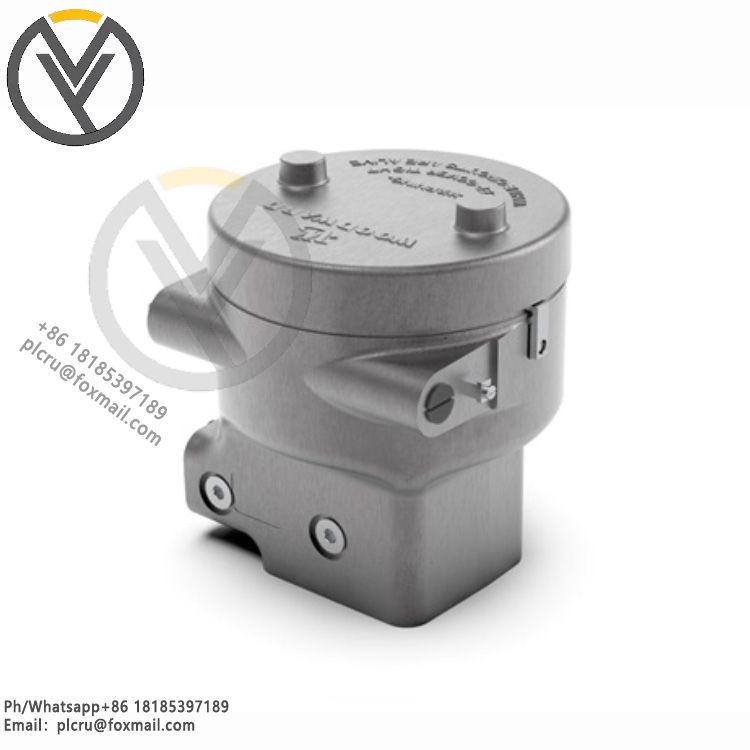

WOODWARD 9907-1200 Electro-hydraulic Converter

WOODWARD 9907-1200 electro-hydraulic converter is a high-performance device manufactured by Woodward, USA. The following is a detailed analysis of its features:

1. Basic Overview

Model: 9907-1200

Product Name: Electro-hydraulic Converter, also known as CPC II

Manufacturer: Woodward

2. Functions and Features

Signal Conversion: Receives 4-20mA current setting input and provides an accurate and stable pressure output proportional to the input current.

Precise Control: Used to control the steam inlet valve or related servo system to ensure accurate pressure control.

Easy to install and maintain: With sufficient support force, the CPC-II end face can be installed with a variety of brackets for easy installation; at the same time, its design is also easy to maintain and repair.

3. Adaptation and Compatibility

Replacement Model: The new Woodward CPC-II 9907-1200 replaces the old models 9907-1105, 9907-1106, 9907-1102, 9907-1103, 9907-1100, etc.

Matching Use: Generally used with Woodward 505/505E controller governor, suitable for controlling industrial steam turbines, small grid turbine generators or turbo expanders.

4. Technical Specifications

Weight: About 25KG

Interface: The three hydraulic ports on the CPC-II are connected to the external oil supply, hydraulic discharge and valve servo control device.

Installation: It needs to be installed on an adapter block (or plate) and connected with four M10x1.5 screws.

5. Application Fields

Widely used in energy, oil and gas, aviation, aerospace and industrial fields for monitoring and controlling various mechanical and electronic systems.

6. Maintenance and Installation Recommendations

Before installation, the hydraulic lines, supply lines, tank, and lines from the WOODWARD 9907-1200 to the controlled servo system should be thoroughly flushed.

It is recommended to install a high-capacity, serviceable filter upstream of the WOODWARD 9907-1200 supply port to maintain hydraulic cleanliness.

7. Prices and Suppliers

Prices vary by supplier and region and can be obtained from various channels, such as B2B platforms such as Baidu Aicaigou.

8. Additional Information

The converter may also have a self-diagnostic function that can detect and report any faults or abnormal conditions, facilitating user maintenance and repair.

In general, the WOODWARD 9907-1200 electro-hydraulic converter is a powerful, easy to install and maintain high-performance device that is widely used in various industrial fields that require precise control and monitoring.
