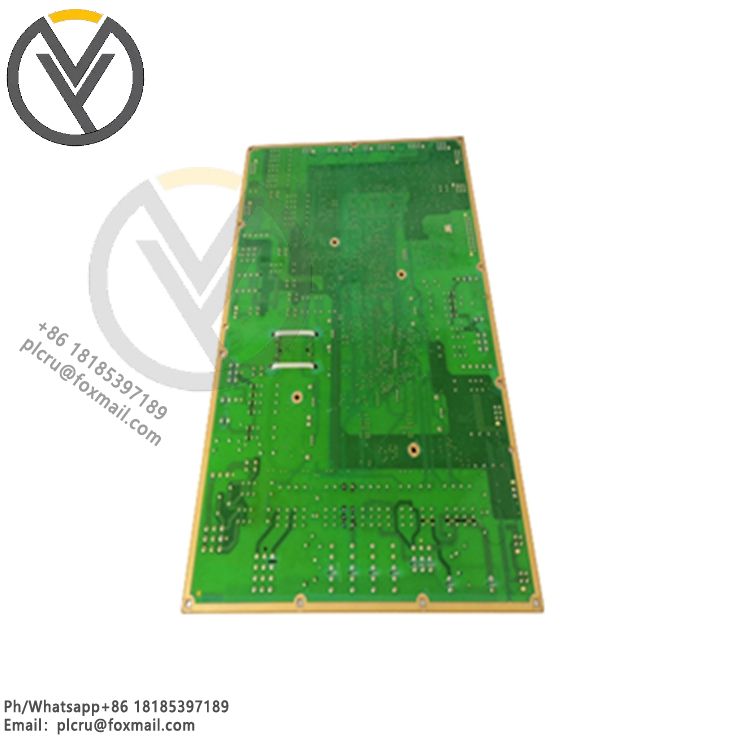

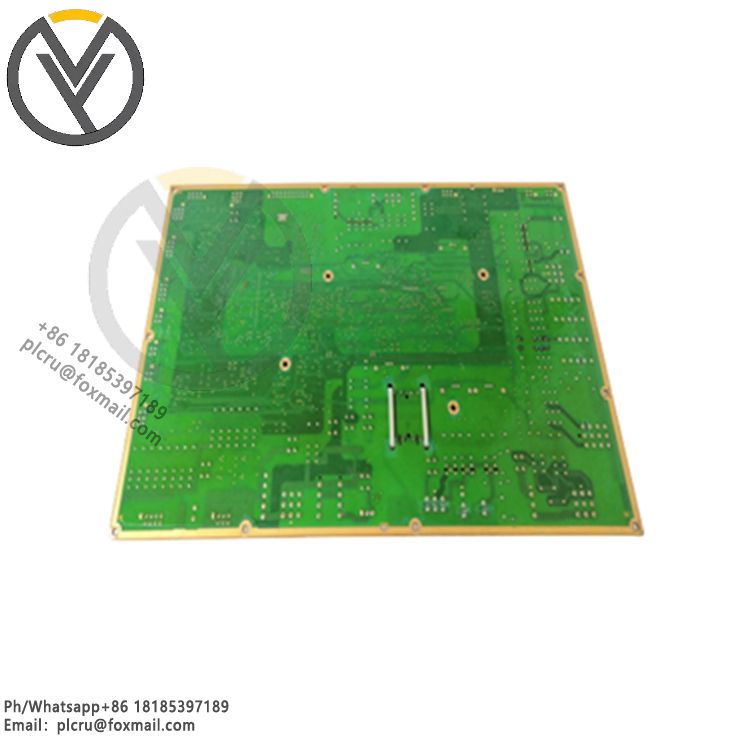

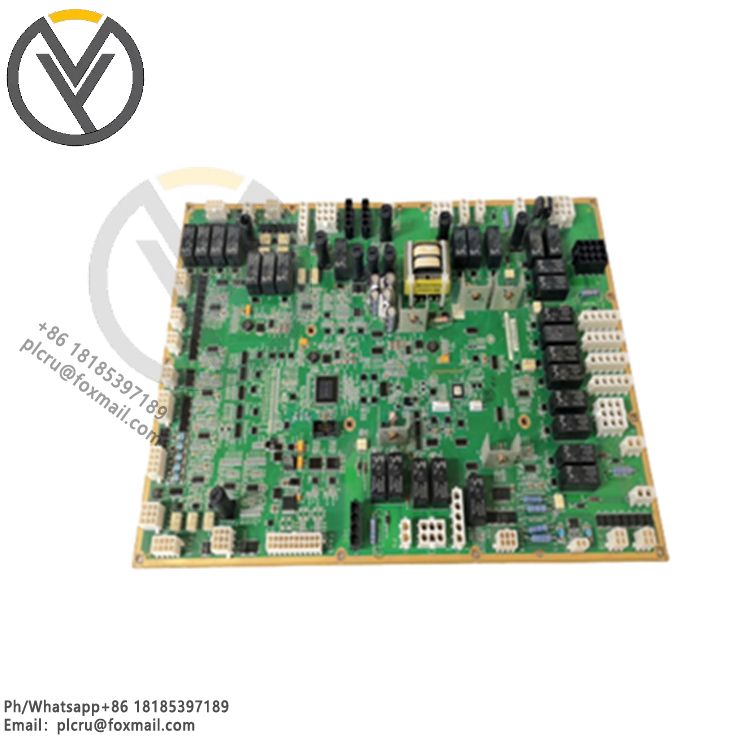

GE IS200EGPAG1BEC Gate Pulse Amplifier Board
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
Information about the GE IS200EGPAG1BEC Gate Pulse Amplifier Board can be summar
Information about the GE IS200EGPAG1BEC Gate Pulse Amplifier Board can be summarized as follows:
Product Overview
The GE IS200EGPAG1BEC is a gate pulse amplifier board designed specifically for use in power conversion cabinets as part of the EX2100 series.
The board is a product of General Electric (GE) and may have GE-specific technology and design features, such as advanced control algorithms and communication technology.
Key Features
Location and Connections:
The IS200EGPAG1BEC board is located in the power conversion cabinet and connects to the power conversion module.
Although the board can operate independently, power is typically derived from an EPDM module.
Feedback and Thermal Switches:
The board receives feedback from two thermal switches mounted on the SCR radiator.
These switches trigger and open at alarm levels (170°F) and trip levels (190°F) and can be opened individually or together to indicate different conditions (alarm or trip/fault).
Jumper Configuration:
The board has five jumpers that allow the user to select an application-specific configuration.
The jumper configuration can be easily adjusted before installation.
LED Indicators:
The LED indicators on the board are used to indicate various conditions including current into the bridge, line filter, gate power, output ignition, bridge temperature, alarm/fault conditions and cooling fan rotation.
