GE IC200CPU002 PLC CPU module is an industrial controller component manufactured

GE IC200CPU002 PLC CPU Module

GE IC200CPU002 PLC CPU module is an industrial controller component manufactured by GE (General Electric) with a variety of features and functions, widely used in industrial automation control systems. The following is a detailed analysis of the module:

1. Basic Overview

Model: IC200CPU002

Manufacturer: GE (General Electric)

Type: PLC (Programmable Logic Controller) CPU Module

2. Main Features

High-performance processor:

IC200CPU002 is equipped with a high-performance processor that can handle complex control algorithms and real-time control tasks to ensure fast response and operation of the system.

Rich I/O Capabilities:

The module comes with 2048 digital inputs and outputs and supports a variety of input/output (I/O) modules, including digital input/output, analog input/output, and special function modules, etc., to meet the processing needs of various input and output signals.

Multiple Communication Interfaces and Protocol Support:

IC200CPU002 has a variety of communication interfaces, including RS-232 and RS-485 serial ports, as well as Ethernet, etc. It supports communication protocols such as DH+, ControlNet and Ethernet, enabling PLC-5 controllers to exchange data and communicate with other devices and systems to achieve integrated control of the system.

User Configurable Memory:

Equipped with 42KB of user configurable memory, it uses non-volatile flash memory to store programs and instructions to ensure data security and persistence.

Programming Environment and Language Support:

Program development and debugging are performed using Rockwell Automation's RSLogix 5 programming software. RSLogix5 provides an intuitive graphical programming interface and multiple programming language support, such as Ladder Diagram and Structured Text, to meet the programming needs of different users.

Reliability and Scalability:

IC200CPU002 has stable performance and reliability, and is suitable for long-term operation in industrial environments. At the same time, it also has good scalability, and additional modules and functions can be added as needed to meet changing system requirements.

Compatibility:

Compatible with other products of Rockwell Automation, such as remote I/O systems and motion controllers, to facilitate overall integration and collaborative control of the system.

3. Module composition

The IC200CPU002 CPU module mainly includes three parts: control unit, operation unit and storage unit. These three parts are connected by the CPU internal bus:

Control unit: It is the command and control center of the entire CPU. It is responsible for taking instructions from the memory, determining what operations should be performed through instruction decoding, and sending micro-operation control signals to the corresponding components.

Operation unit: It is the core of the operator and is responsible for performing arithmetic and logical operations.

Storage unit: It includes CPU on-chip cache and register group, which are used to temporarily store data.

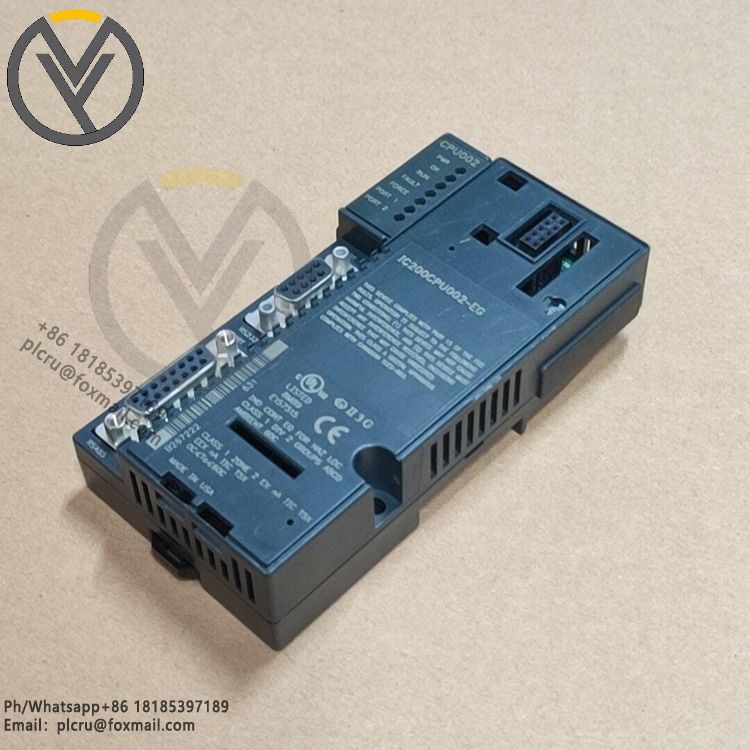

IC200CPU002 (1).jpg
