Basic information

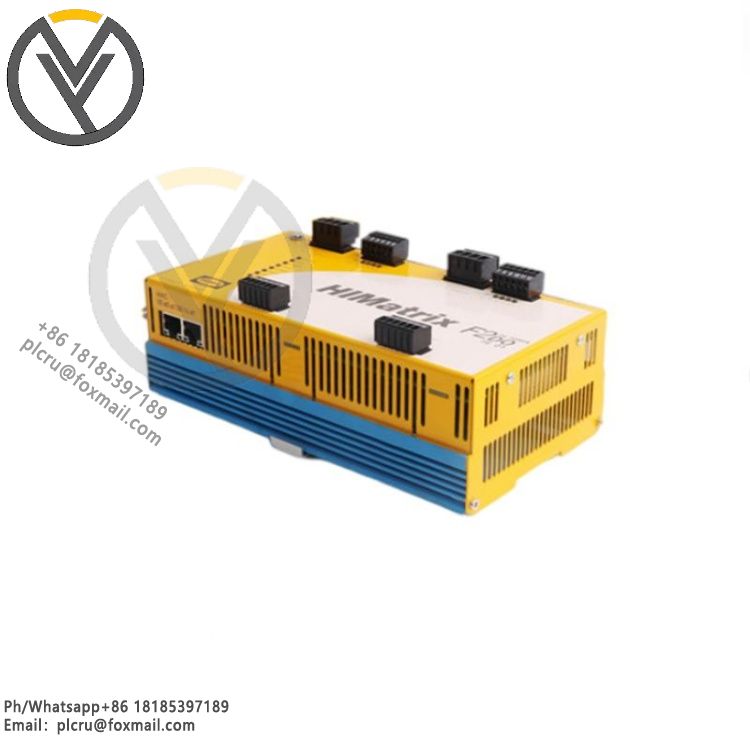

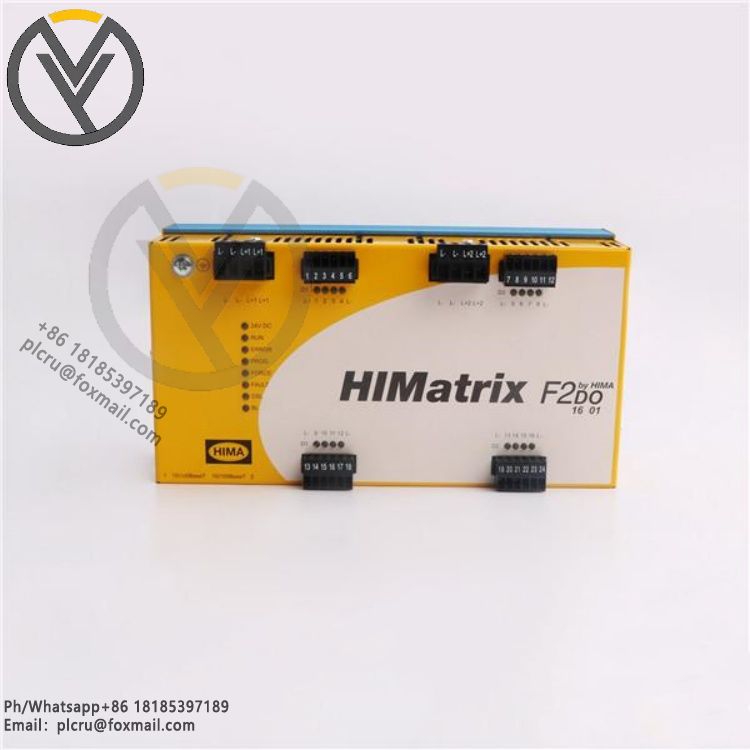

Name: Safety-related remote I/O module.

Brand: HIMA.

Origin: Germany.

Specifications

Dimensions: 100mm×70mm×40mm

Weight: 0.5kg

Power supply voltage: 24V DC

Number of output channels: 16

Output type: digital

Output current: 1A per channel

Safety integrity level (SIL): 3

Performance level (PL): E

Certification: IEC 61508, ISO 13849-1

Casing material: metal

Operating temperature: 0℃ to +60℃

Storage temperature: -40℃ to +85℃

Relative humidity: 5% to 95%, no condensation

Protection level: IP20

Product Features

Compact design: 16 digital outputs integrated in a metal housing, easy to install and use.

High safety: Connect to HIMax or Himatrix controllers via secure Ethernet, meeting SIL 3 (IEC 61508, IEC 61511, IEC 62061), Cat. 4 and PL e (EN ISO 13849-1) and SIL 4 (EN 50126, EN 50128, EN 50129) safety standards.

Clear status indication: Each output state (HIGH, LOW) is indicated by a single LED for real-time monitoring.

Strong compatibility: Can be used in various model variants of SILworX and ELOP II Factory.
