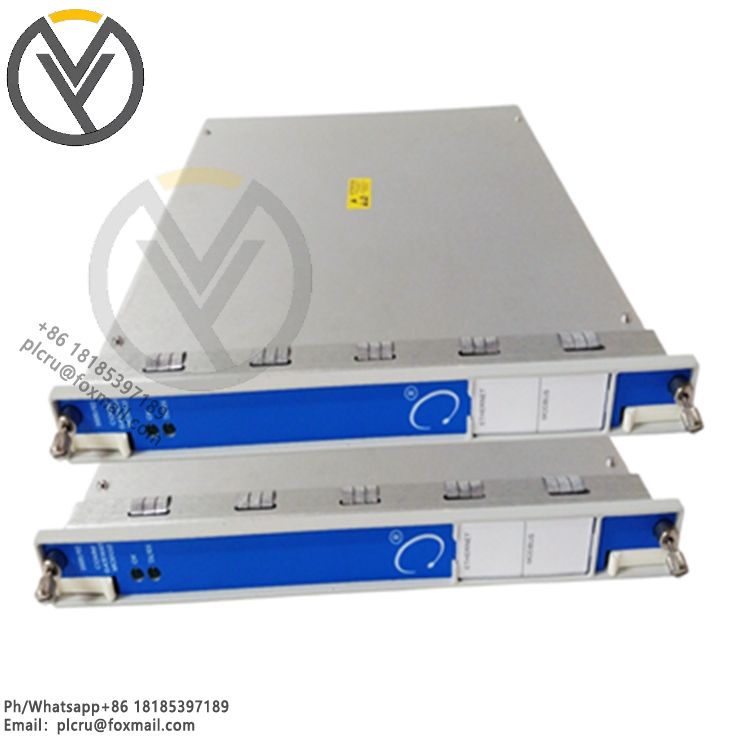

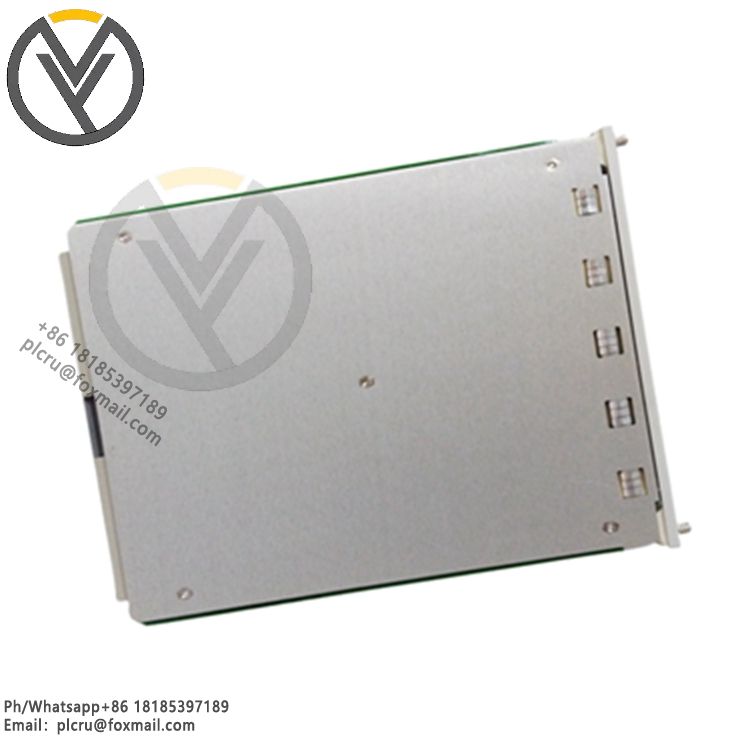

3500/92 is a Communication Gateway module developed by Bently Nevada
Functional Description
3500/92 is a Communication Gateway module developed by Bently Nevada. The communication Gateway module offers extensive serial (RS232/RS422/RS485) and Ethernet TCP/IP communication capabilities for integrating all rack monitoring values and statuses with process control and other automation systems. Additionally, it enables Ethernet communication with the data acquisition software and 3500 Rack Configuration Software. Protocols supported include:
- Modicon Modbus protocol (through serial communications)
- Modbus/TCP protocol (a serial Modbus variation used for TCP/IP Ethernet communications)
Proprietary Bently Nevada protocol(for communication with 3500 Rack Configuration and Data Acquisition Software packages)
Features
- For 10BASE-T star configuration Ethernet networks, it's Ethernet connection is an RJ45 connection. With the exception of the primary value Modbus registers, the component supports the communication interfaces, communication protocols, and additional functionality.
- The primary value Modbus registers were replaced by a Configurable Modbus Register Utility, which may now offer the same functionality.
Power Consumption
- 5.0 watts typical with ModbusRS232/ RS422 I/O Module
- 5.6 watts typical with Modbus RS485 I/O Module
Data Types
- Utilizes a high-speed internal network to gather information from other modules in the rack, including current measured values with a time stamp, module statuses, and current alarm statuses.
- The exact data types returned depend on the channel configuration and module type.
Update Time: The rate of data gathering for all modules in the 3500 rack will not be greater than 1 second, depending on the design of the rack.
Protocols
BNC Host Protocol
Communication over Ethernet TCP/IP with the 3500 Configuration Software and the 3500 Data Acquisition and Display Software.
Modbus
based on the PIMBUS-300 Reference Manual for AEG Modicon. use the RTU transmission mode, or remote terminal unit.
Communication Link
Ethernet, 10Mbps, and conforms to IEEE802.3
Protocol
Ethernet TCP/IP frame and Modbus/TCP
Connection
RJ-45 (telephone jack style) for 10BASE-T Ethernet cabling
Outputs
OK LED
Indicates when the module is functioning properly.
TX/RX LED
Indicates when the system is communicating with other modules in the 3500 rack.
Rack Space Requirements
- Monitor Module - 1 full-height front slot
- I/O Modules - 1 full-height rear slot
Environmental Limits of Main and I/O Module
- Operating Temperature: -30 to +65 degrees Celsius
- Storage Temperature: -40 to +85 degrees Celsius
- Humidity: 95%, non-condensing
