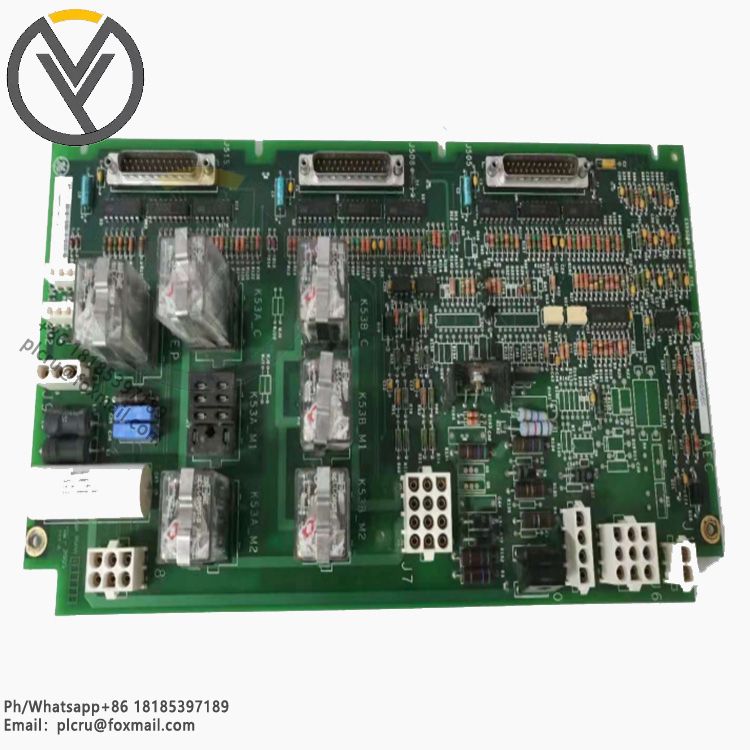

General Electric GE IS200ECTBG1A Exciter contact terminal board

The General Electric GE IS200ECTBG1A Exciter Contact Terminal Board (ECTB) is an interface board specifically designed for exciters with the following detailed features and functions:

Main functions:

Support excitation contact input and output for receiving and sending excitation signals to control the operation of the exciter.

Control relay contact output and user contact input, with a number of input and output ports, can be connected to a variety of sensors and actuators, to achieve comprehensive monitoring and control of the exciter.

Redundant mode:

The model is labeled 1A, indicating that it can only operate in redundancy mode. Hot standby (HSB) redundancy design, two redundant units constitute a redundant system, improve the reliability and stability of the system.

Physical characteristics:

The net length of the product is 1200mm, the net height is 220mm, the net width is 60mm and the net weight is 6kg.

The board contains three pin connectors, labeled J405, J408, and J415.

Other features:

Monitoring function: It can monitor the operating status of the exciter, including current, voltage, speed and other parameters to ensure the normal operation of the exciter.

Control function: By controlling the output of the excitation signal, the exciter can be controlled, such as starting, stopping, speed regulating and other operations.

Protection function: With overload protection, short circuit protection, undervoltage protection and other functions, effectively protect the exciter and the entire system from damage.

Communication function: Data transmission and communication with host computer or other equipment can be carried out through the communication interface to achieve remote monitoring and control.

Usage and compatibility:

When using the board, it must be connected to EMIO in order to control the C-type output.

The board is usually used in conjunction with the EX2100 excitation controller family for complete control of the exciter.

Scope of application:

Due to its powerful features and design, the IS200ECTBG1A exciter contact terminal board is suitable for a variety of application scenarios requiring precise control and monitoring of exciters, especially in the fields of power, industrial automation, etc.
