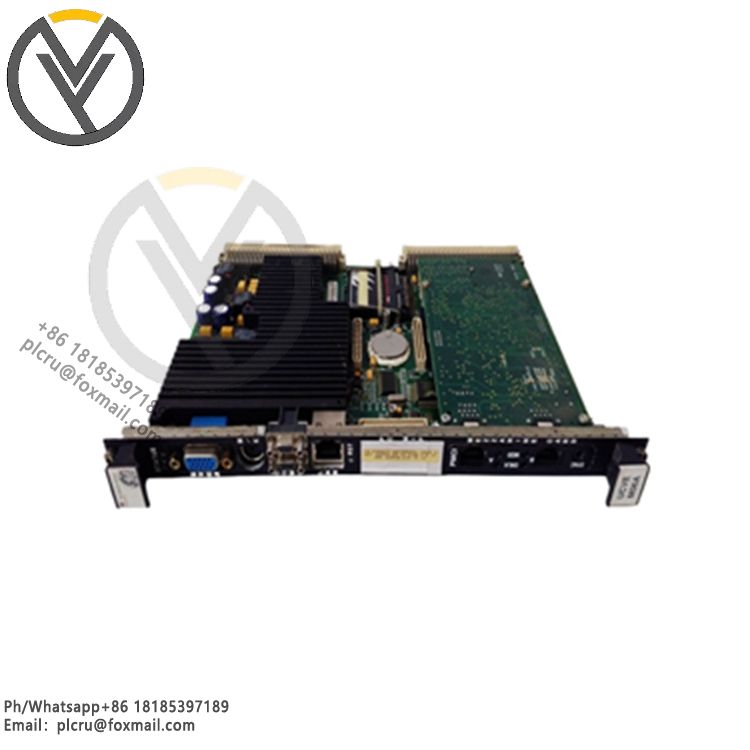

GE V7768-320000 Single Board Computer Module
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The GE V7768-320000 Single Board Computer Module is a VMEbus single board comput
The GE V7768-320000 Single Board Computer Module is a VMEbus single board computer from GE Fanuc Intelligent Platforms that offers a range of powerful features and functions. Here are the details and features of the module:
Processor and Memory:
The Intel Core 2 Duo processor provides processing speeds up to 2.16 GHz.
Up to 2 GB of DDR2 SDRAM ensures smooth multitasking and fast data access.
Up to 4 Mbyte L2 cache.
Chipset and I/O Interface:
The Intel 945GME Express chipset is integrated, providing a rich set of I/O interfaces and expansion capabilities.
I/O options include dual Gigabit Ethernet, two SATA interfaces, four USB 2.0 ports, keyboard/mouse/SVGA interfaces on the front panel, and a PMC site that supports PCI-X.
Expansion Capability:
In addition to the PCI-X PMC site on the V7768, three additional PMC expansion points are provided to customers, allowing users to flexibly configure I/O according to actual needs.
Provides more customer-defined I/O functions for the PMC237CM1/V PMC expansion board from GE Fanuc Intelligent Platforms.
Operating system support:
Supports operating systems such as Windows® XP, VxWorks® and Linux®.
Reliability and stability:
The use of high-quality materials and strict production processes ensures stable operation in harsh industrial environments.
With good self-diagnosis function, once the power supply or other software and hardware abnormalities occur, the CPU can immediately take effective measures to prevent the fault from expanding.
Application areas:
Applicable to environmental protection, bio-industry, energy, pharmaceuticals and comprehensive fields.
Other features:
Provides Celeron® M processor options, which can increase the upper operating temperature by 20 degrees.
Supports remote control and monitoring, and can exchange and communicate data with other control systems through communication interfaces to achieve remote monitoring and management.
In summary, the GE V7768-320000 single-board computer module has become a high-performance solution in the field of industrial automation control and data processing with its powerful processor, rich I/O interfaces, flexible expansion capabilities, reliability and stability, and a wide range of applications.
