GE VMIVME-4150 is a 12-bit analog output board with many unique features and fun
GE VMIVME-4150 is a 12-bit analog output board with many unique features and functions. Here is a brief introduction to the product:

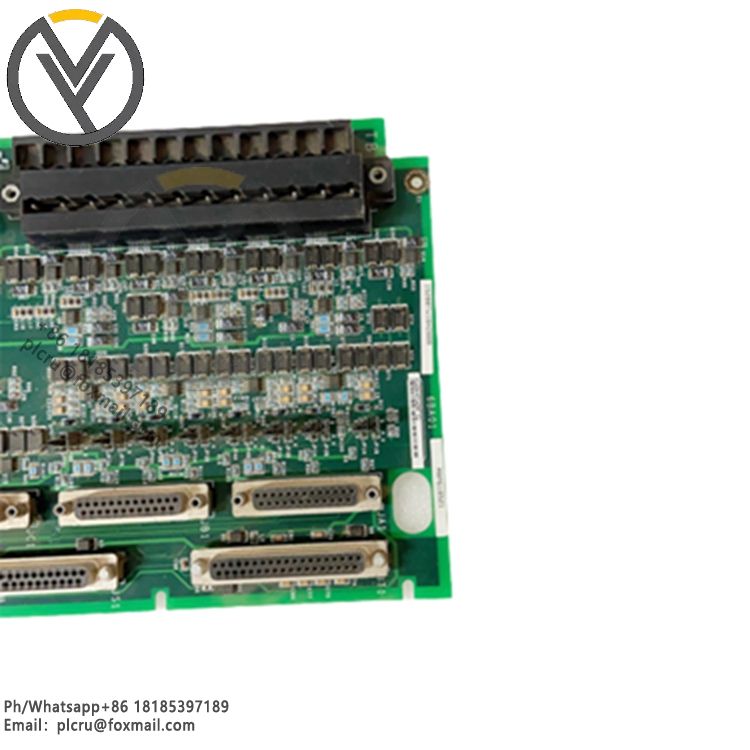

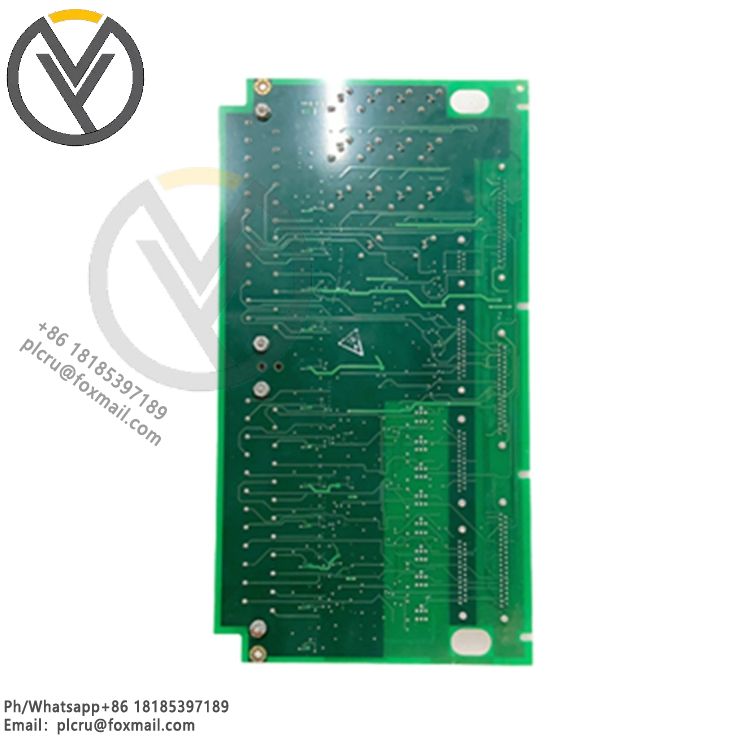

VMIVME-4150 is a board that provides 12 isolated high 12-bit analog output channels on a single 6U form factor VME board. Each channel is electrically isolated from all other channels and VME, ensuring the stability and reliability of data transmission.
The main features of this board include:
Fully isolated analog output: The board provides 12 fully isolated analog outputs, each with 1,000 Vpk isolation capability, ensuring channel-to-channel and channel-to-bus electrical isolation.
High resolution output: Each channel has 12-bit resolution, providing high-precision analog signal output.
Flexible voltage output range: The bipolar voltage output range can be selected as 2.5, 5 or 10V, while the unipolar voltage output range can be selected as 0 to 2.5V, 0 to 5V or 0 to 10V.
Load capacity: The load capacity of the voltage output is 10mA over the entire 10V range.
Current loop output: The board also provides 4 to 20, 0 to 20 or 5 to 25mA current loop output options.
High-precision output: The voltage output accuracy is 0.05% and the current loop output accuracy is 0.08%, ensuring the accuracy of the output signal.
Flexible channel configuration: Users can choose 4, 8 or 12 channel configurations as needed to meet different application requirements.
Optical data coupling: Provides complete galvanic isolation, increasing the security and reliability of data transmission.
Static readback data register: Simplifies program control and improves system flexibility and maintainability.
Front panel entry for field connection: Convenient for users to connect and debug on site.
Programmable connect/disconnect operation of voltage output: Helps system testing and troubleshooting.
These features and functions of VMIVME-4150 make it very suitable for applications that require high-precision analog signal output, such as industrial automation, test and measurement.
