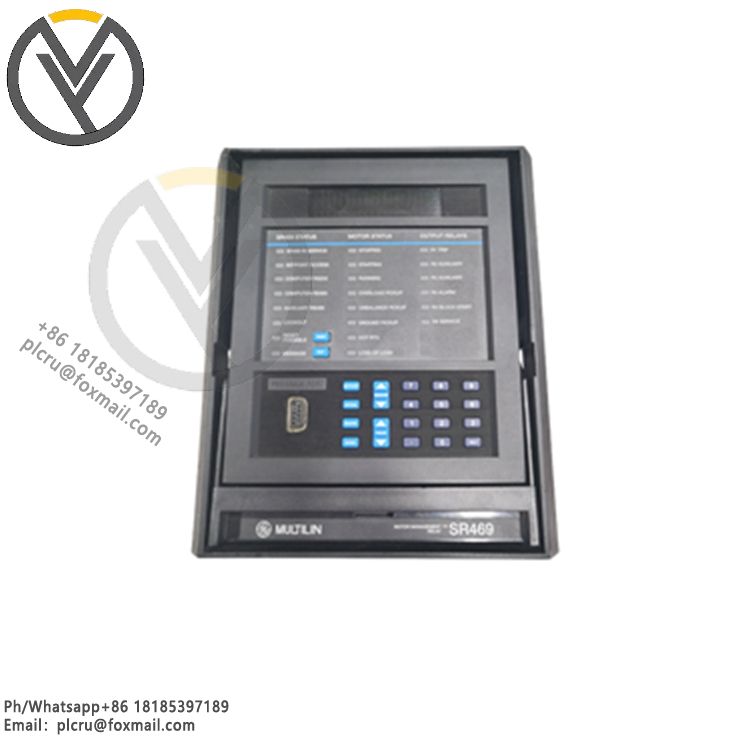

GE SR469-P5-HI-A20 Motor Management Relay
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The GE SR469-P5-HI-A20 motor management relay is a device provided by GE Multili
The GE SR469-P5-HI-A20 motor management relay is a device provided by GE Multilin, designed for motor management in industrial automation control systems. The following are detailed information and features about the relay:
Product Overview:
Model: SR469-P5-HI-A20
Brand: GE Multilin
Type: Motor Management Relay
Scope of Application: Medium Voltage Motor
Main Functions and Features:
Motor Control Function: It has powerful motor control functions, which can realize the control operations such as starting, stopping, forward and reverse rotation of the motor, and is suitable for various motor drive application scenarios.
Protection Function: It has overcurrent, overvoltage, undervoltage and other protection functions, which can prevent abnormal conditions from causing damage to the motor and module.
Easy to Program and Configure: It provides easy-to-use programming interface and configuration tools to facilitate users to program and set parameters of the module. Users can program according to actual needs to realize various complex control logic and data processing functions.
High Reliability: It uses high-quality electronic components and materials, and undergoes strict quality control and testing to ensure long-term stable operation during use.
Easy to Maintain and Debug: The design is simple and easy to clean and maintain. Provides a wealth of debugging tools and functions to facilitate the user to debug and troubleshoot the module.
Technical Specifications:
Output: Provides four 4-20 mA analog outputs.
Control Power Supply: Rated at 90-300 VDC, 70-265 VAC @ 48-62 Hz.
CT Secondary Coil: Standard device with 5A phase CT secondary side.
Safety: Comes with CE certification, proving that it complies with European safety standards.
Structure and Design:
Withdrawable Structure: Designed for quick replacement, convenient for maintenance or replacement when needed.
Box Design: The device comes with a box for easy installation and protection of internal components.
LCD Display: Includes a front panel with LCD display for easy viewing and setting of parameters.
Side Design: The side design allows airflow, which helps the device stay within the appropriate operating temperature range.
Motor Thermal Model:
The motor thermal model of the SR469-P5-HI-A20 provides functions such as RTD bias, motor cooling time constant, start inhibition and emergency restart, unbalanced bias and overload curve, which helps to accurately control and manage the operating status of the motor.
In summary, the GE SR469-P5-HI-A20 motor management relay is a powerful, stable, easy-to-use and maintain motor management device suitable for motor management needs in various industrial automation control systems.
