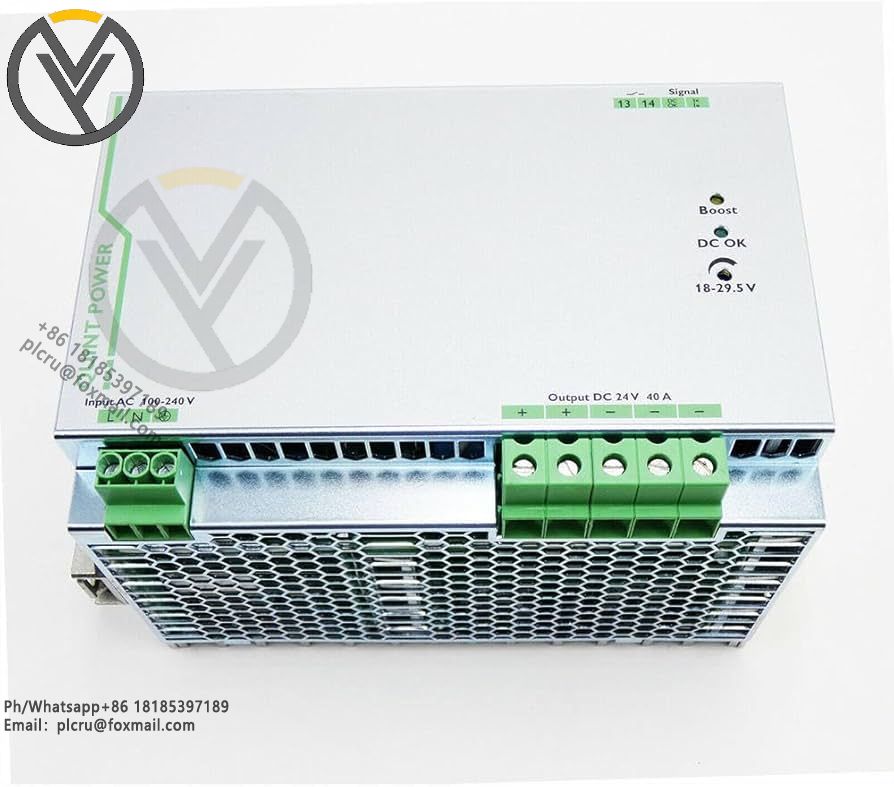

Phoenix QUINT-PS/1AC/24DC/40-2866789 Power Supply

Phoenix QUINT-PS/1AC/24DC/40-2866789 power supply is a switching power supply product produced by Phoenix Contact. The following is a detailed analysis of the power supply:

1. Basic information

Model: QUINT-PS/1AC/24DC/40-2866789

Manufacturer: Phoenix Contact

Origin: Germany (design and production), but there may be sales and service networks in many places around the world

2. Technical specifications

Input characteristics

Input voltage range: Usually supports a wider input voltage range, such as 85V AC to 264V AC (specifics may vary depending on product batches or regions).

Frequency range: supports input frequencies of 45Hz to 65Hz.

Input fuse: Built-in 20A slow fuse to provide input overcurrent protection.

Output characteristics

Output voltage: The nominal output voltage is 24V DC with high accuracy and stability, typically ±1% accuracy.

Output current: The maximum output current is 40A, which can meet the needs of high-power loads.

Output power: The rated power is 960W, which can provide stable DC power output.

Other features

Technical features: The primary switch mode is adopted, combined with SFB (selective fuse) technology, to provide efficient and reliable power conversion and protection functions.

Protection function: It has multiple protection functions such as overvoltage protection, overcurrent protection, short circuit protection, etc. to ensure the safety of power supply and load.

Environmental adaptability: It can work normally in a wide temperature range (-25°C to 70°C) and adapt to various industrial environments.

3. Application and installation

Application field: The power supply device is widely used in industrial automation, mechanical equipment, communication equipment and other fields, providing stable and reliable power support for various electronic equipment and systems.

Installation method: It supports DIN rail installation, which is convenient for users to flexibly deploy and install according to actual needs.
