AAEON GENE-9455 Rev. B-Embedded Single Board Computers
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189

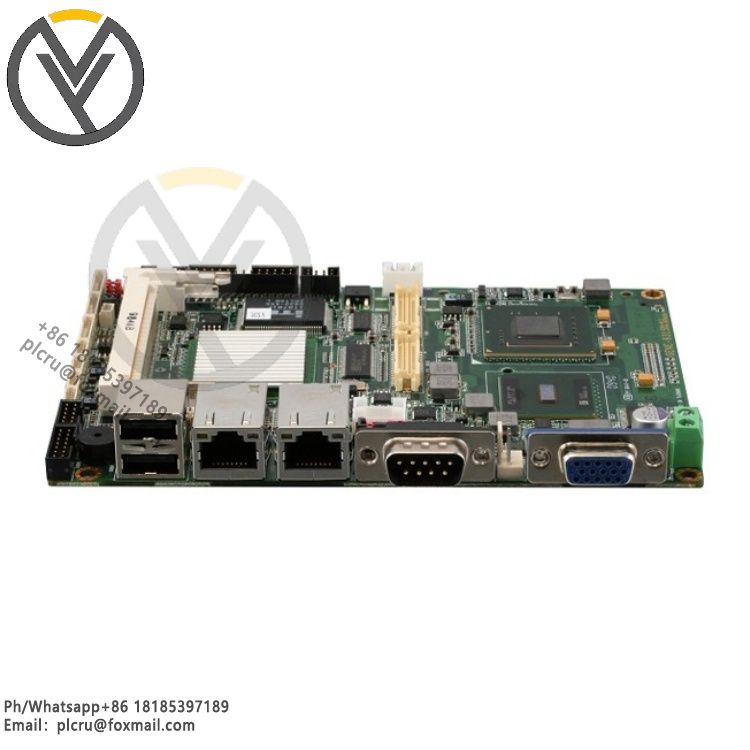

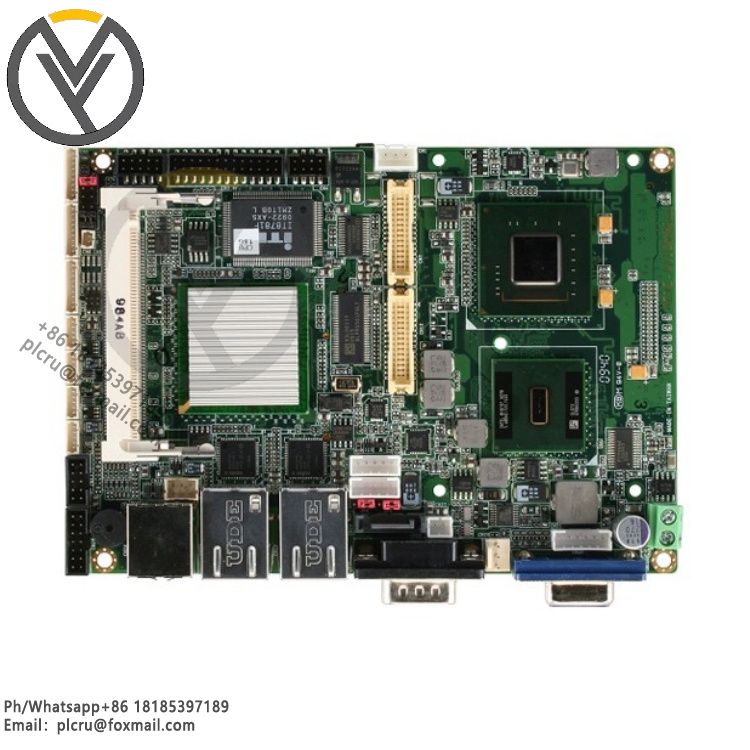

The Advantech GENE-9455 Rev.B adopts the Intel® Atom™ N270 processor, with a max
The Advantech GENE-9455 Rev.B adopts the Intel® Atom™ N270 processor, with a maximum speed of up to 1.6 GHz and a front-side bus of 533MHz. This 3.5" motherboard adopts 200-pin DDR II SODIMM system memory, with a maximum of 2GB. At the same time, it is paired with the Intel® 945GSE + ICH7M chipset to improve the operational performance of the product. Furthermore, GENE-9455 Rev.B is equipped with two sets of Intel® 82574L 10/100/1000 BASE-TX Ethernet controllers, providing excellent network transmission capabilities. In terms of storage function, GENE-9455 Rev.B is equipped with one SATA II slot and one Type II CF slot for storage. The Mini PCI and Mini Card interfaces can be connected to various peripheral devices, including wireless communication devices or other customized functions. GENE-9455 Rev.B is also equipped with 6 USB2.0 interfaces, 4 COM ports, 1 parallel port, and 1 8-bit digital I/O, allowing customers to flexibly expand the I/O requirements. In addition, GENE-9455 Rev.B also has the "Trusted Platform Module" (TPM) onboard to provide customers with security protection functions in application software. The extremely high operational flexibility provided by GENE-9455 Rev.B is your best choice when encountering space and budget constraints.
GENE-9455 Rev.B supports all screen display requirements. It can support CRT, LVDS, NTSC and PAL standard S-terminals, video interfaces, and can be optionally equipped with a DVI-I interface. Furthermore, in terms of audio, GENE-9455 Rev.A 2.1 also features Mic-in, CD-in, Line-in and Line-out, and supports AC97 2.3 dual-channel high-definition audio. Make GENE-9455 Rev.B a highly efficient product in multimedia audio-visual applications.
