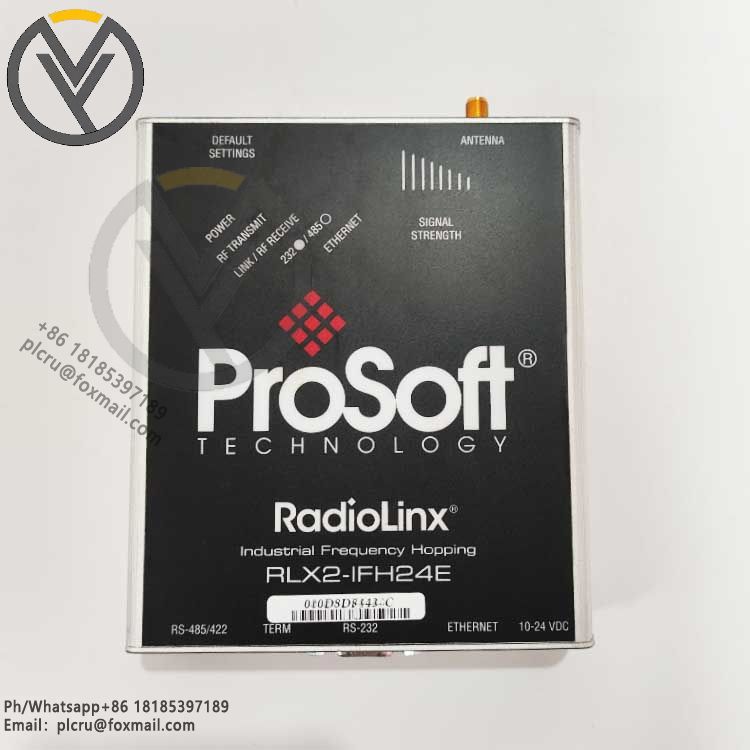

Prosoft RLX2-IFH24E Communication Module
Delivery time 3 days
Product origin New/used
Email plcru@foxmail.com
Mobile/wechat /WhatsApp +86 18185397189
The following is the data sheet content of the Prosoft RLX2-IFH24E communication
The following is the data sheet content of the Prosoft RLX2-IFH24E communication module:
General Information
Product Model: RLX2-IFH24E
Product Type: Industrial frequency hopping 2.4GHz series radio equipment, configurable as master, repeater and remote station.
Brand: ProSoft Technology.
Electrical Characteristics
Operating Voltage: DC 9-24V.
RF Data Transfer Rate: 1.1Mbps.
Frequency and Bandwidth
Operating Frequency Band: Internationally licensed 2.4GHz bandwidth, frequency range from 2.400GHz to 2.4835GHz.
Maximum Transmission Power: Up to 1W at long distances, providing stable wireless signal transmission.
Industrial Grade Design
Casing Material: Metal casing, with good vibration and impact resistance.
Operating Temperature Range: Adapt to industrial-grade operating temperature range, suitable for various harsh environments.
Hazardous Area Certification: Ensure safe use in special environments.
Configuration and Diagnosis
Software Support: Comes with graphical ControlSCAPE software and OPC server, enabling HMI to diagnose RF wireless networks.
Diagnostic Function: Provides advanced diagnostic functions, including real-time monitoring of parameters such as temperature and signal quality.
