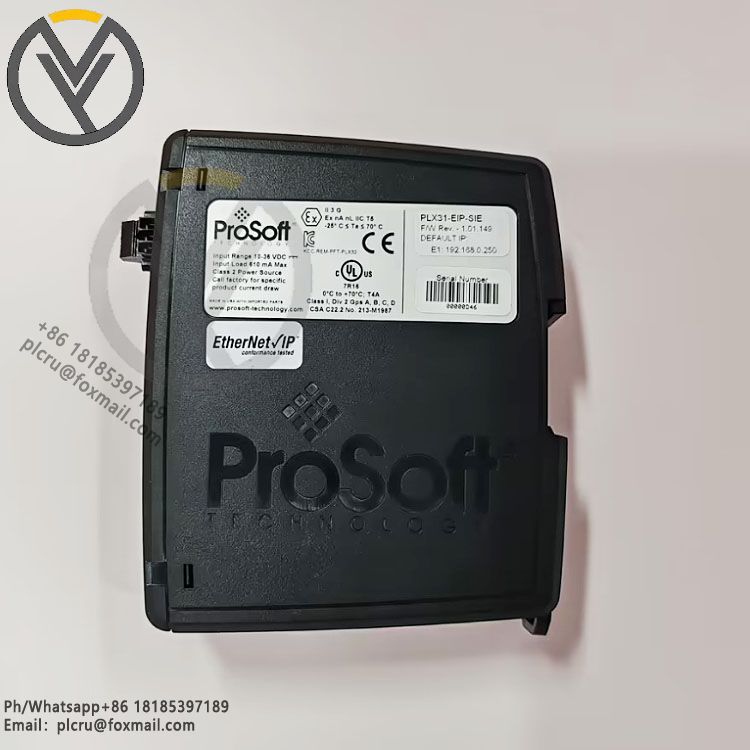

ProSoft PLX31-EIP-SIE Communication Module

Overview

PLX31-EIP-SIE is ProSoft's EtherNet/IP to Siemens Industrial Ethernet communication gateway, allowing high-speed bidirectional data transmission between EtherNet/IP-enabled controllers or devices and Siemens S7 series PLCs (including S7-200, S7-300, S7-400, S7-1200, and S7-1500, etc.).

Specifications

EtherNet/IP Specifications

Number of Class 3 Server Connections: 5

Supported PLC Types: PLC2, PLC5, SLC, CLX, CMPLX, Micro LX

Supported Message Types: PCCC and CIP

Class 3 Client Connections: Connected - 2, Unconnected - 1

Number of Class 1 I/O Connections: 2

I/O Connection Size: 248/248

Maximum RPI Time: 5ms per connection

Supported CIP Services: 0x4C - CIP Data Table Read, 0x4D - CIP Data Table Write

Command List: 100 commands per client, configurable for command type, IP address, register addressing, and word/bit count

Siemens Industrial Ethernet Specifications

Supported PLC Data Exchange (Read and Write): Siemens S7 - 200, Siemens S7 - 300, Siemens S7 - 400, Siemens S7 - 1200, Siemens S7 - 1500

Supported register types: DB, input, output, flag, counter, timer

Supported clients: 20

Hardware specifications

Power supply: Nominal 24VDC, 10 - 36VDC allowed, with positive, negative, ground terminals

Current load: 300mA at nominal 24VDC, 610mA maximum at 10 - 36VDC

Operating temperature: -25℃ to 70℃ (-13℉ to 158℉)

Storage temperature: -40℃ to 80℃ (-40℉ to 176℉)

Shock: Meets IEC 60068 - 2 - 27, 15g, 11ms, 3 axes when operating; 30g, 18ms, 3 axes when non-operating

Vibration: Meets IEC 60068 - 2 - 6, 5g, 10 - 150Hz

Relative humidity: 5% - 95% RH, non-condensing

Dimensions (H × W × D): 5.38 inches × 1.99 inches × 4.38 inches (13.67cm × 5.05cm × 11.13cm)

LED indicators: including configuration (CFG), error (ERR), power (PWR), hardware fault (FLT), network status (NS), EtherNet/IP Class I or Class III connection status, module status (MS), module configuration status, Ethernet communication port link/activity, 100Mbit, etc.

Ethernet port: 10/100Mbit half-duplex RJ45 connector, electrical isolation 1500VRMS, 50 - 60Hz, 60 seconds, Ethernet broadcast storm recovery capability is less than or equal to 5000 (ARP) frames/second, duration is less than or equal to 5 minutes

Features

Data Prioritization: Multiple I/O connections allow RPI to be set for status and/or control data, optimizing Ethernet bandwidth.

Embedded EDS add-on profiles: Simplifies integration and reduces commissioning time.

SD card slot: For storing profiles, which can be used for disaster recovery.

ProSoft Discovery Service: Allows a PC to see the gateway in different subnets and change its default IP address.

Secure module configuration via module switch (V1.04 and later): Ensures security during configuration.

Large data exchange capability: Up to 10,000 16-bit registers can be used to exchange large amounts of data.
